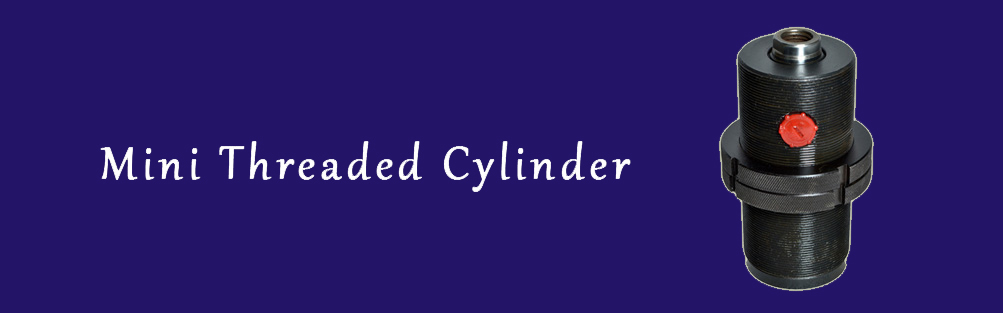

MINI THREADED CYLINDER A51 :

Threaded Cylinders
  1. Threaded body allows exact positioning and easy installation.
DESCRIPTION:

We provide Threaded Cylinders Online in India and our Mini threaded cylinders have the capability to provide the hydraulic clamping functionality even in the tightest and smallest areas. They can be easily fixed by turning them into tapped holes on the fixtures. They are available as single and double acting mini threaded cylinders. Ring nuts can also be used for mounting threaded cylinders in through holes.

FEATURES:
  • Min./ Max. Operating Pressure 10/250 bar.
  • All models have spring return action.
  • Oil port is provided at the bottom to conserve space within the fixture.
  • Cylinders are available with Piston type & Ram type.
NOTE :
  • Refer general design notes before selection & use.
  • For ring nuts refer separate accessories sheet page No. X1.
  • Ordering specification for seal kit. Add prefix "SK" to the model Number.
Keep back pressure in the system and in the line to minimum for smooth working of cylinder.

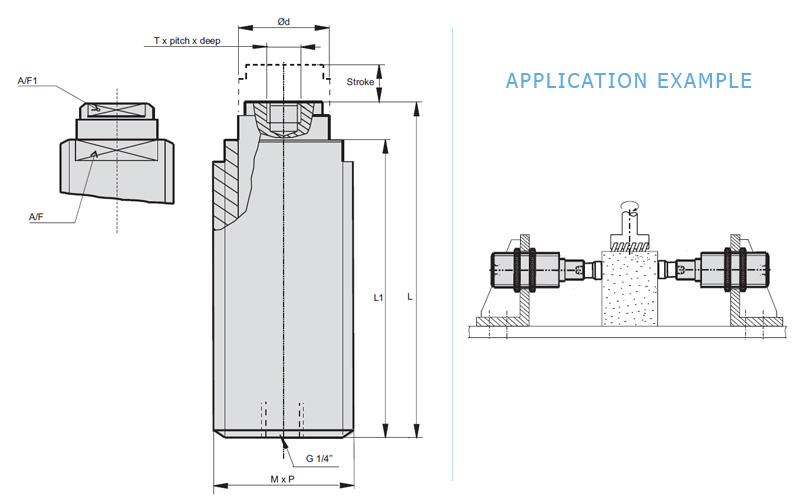

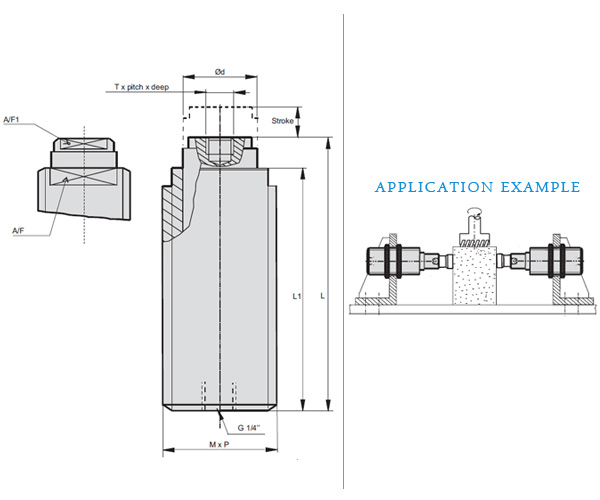

SPECIFICATION CHART

All dimensions in mm.
Model No. A51201 A51202 A51203 A51204
  Force kN @150bar 2.3 3 7.2 16.6
  @ 250 bar 3.7 5 12 27.8
  Piston dia NA NA 25 25
  Piston rod Ø d (Ram) 14 16 16 25
  Piston area Sq. cm 1.5 2 4.9 11.3
  Stroke S ± 0.5 5 15 20 20
  Oil Volume cc 0.75 3 9.8 22.6
  M x Pitch M20x1.5 M24x1.5 M36x1.5 M48x1.5
  T x pitch x deep M5x0.8x5 M6x1x6 M8x1.25x10 M10x1.5x15
  L ± 0.5 57 85 92 100
  L1 52 80 82 90
  A/F 17 20 32 46
  A/F1 10 12 13 22
  Ring Nut XN20 XN24 XN36 XN48
Specifications subject to improvements.

Click here to download a pdf:

A51201 |  A51202 | A51203 |  A51204

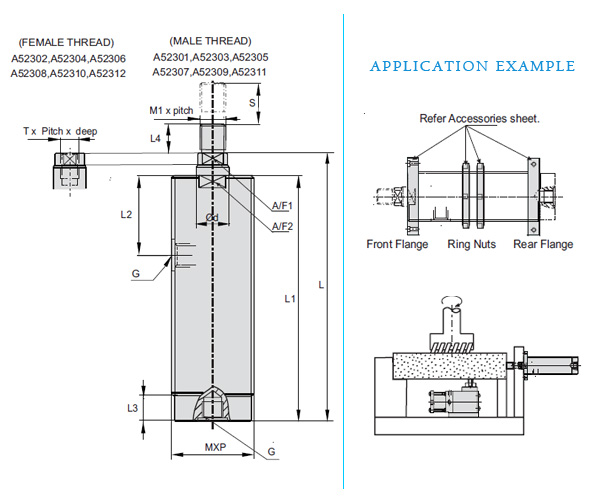

MINI THREADED CYLINDER A52:

DESCRIPTION:

Double Acting Mini Threaded Cylinders are designed for heavy duty Hydraulic clamping forces. Hydraulic inlet port is at the bottom and declamping port is at the side.

FEATURES:
  • Min./Max. Operating Pressure 10/250 bar.
  • Male & Female threaded rod ends.
  • Flange mounting, Foot mounting, Ringnuts are available as accessories. (Refer accessories sheet).
NOTE :
  • Refer general design notes before selection & use.
  • For mounting selections refer separate Accessory Sheet page No. X1 & X2.
  • Ordering specification for seal kit. Add prefix "SK" to the model ' Number.
Keep back pressure in the system and in the line to minimum for smooth working of cylinder.
All dimensions in mm.

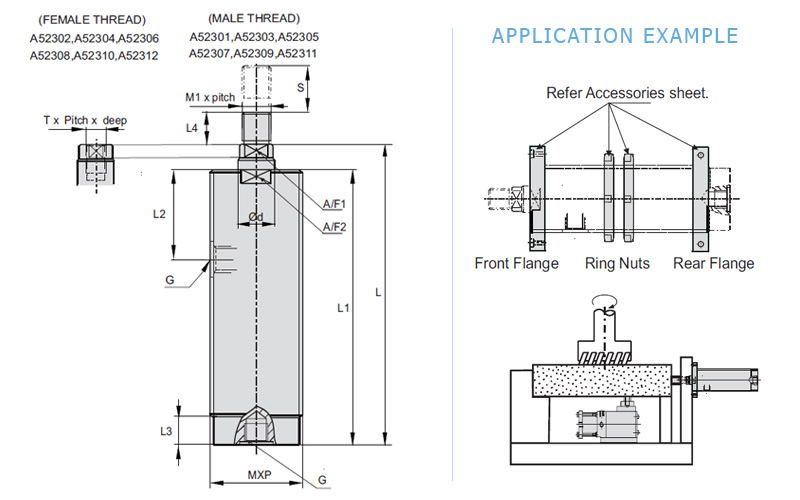

SPECIFICATION CHART
Model No. :
(Male thread)		 A52301 A52303 A52305 A52307 A52309 A52311
(Female thread) A52302 A52304 A52306 A52308 A52310 A52312
Force kN @150bar 3 7.2 11.8 18.5 28.8 45.8
@ 250 bar 5 12 19.7 30.8 48 76.4
Piston / Rod Ø D/d 16 / 12 25 / 16 32 / 20 40 / 25 50 / 32 63/40
Stroke + 0.5 Short (S) 40 40 40 40 40 40
Oil Volume cc 8 19.5 32 50 78.4 124.8
M x Pitch M36x1.5 M39x1.5 M48x1.5 M60x1.5 M65x1.5 M95x2
M1 x Pitch M10x1.5 M14x1.5 M16x1.5 M20x1.5 M24x2 M27x3
T x Pitch x deep M6x1x12 M10x1.5x15 M12x1.75x15 M16x2x25 M20x2.5x30 M27x3x40
L ± 0.5 123 129 134 135 144 152
L1 114 121 125 126 131 138
L2 24 26 26 28 30 33
L3 6 6 8 8 9 9
L4 18 18 22 28 36 40
G 1/8" 1/8" 1/8" 1/4" 1/4" 1/4"
A/F1 10 13 17 22 27 32
A/F2 34 36 46 58 62 92
Foot Mounting Plate XA1601 XA2501 XA3201 XA4001 XA5001 XA6301
Flange Mounting Plate XA1602 XA2502 XA3202 XA4002 XA5002 XA6302
Ring Nut XN36 XN39 XN48 XN60 XN65 XN95
G 1/4" 1/4" 1/4" 1/4" 1/4" 1/4"
ØN 6.6 9 11 11 14 18
ØM x deep 11x8* 14.5x10* 17.5x11 17.5x12 20x13 26x18
Specifications subject to improvements.

Click here to download a pdf:

  A52301 |  A52302 | A52303 |  A52304 | A52305 |  A52306 | A52307 |  A52308

  A52309 | A52310 | A52311 | A52312

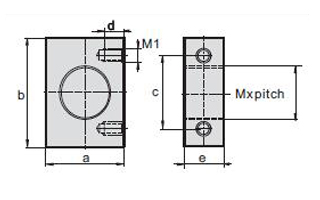

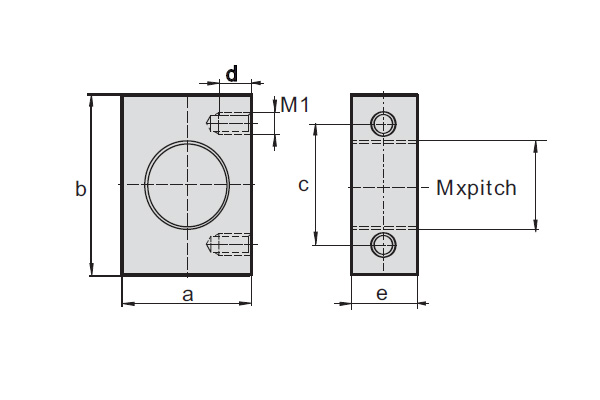

FOOT MOUNTING PLATE FOR MINI THREADED CYLINDERS D/A :

Model No. : XA1601 XA2501 XA3201 XA4001 XA5001 XA6301
M x pitch M36 x 1.5 M39 x 1.5 M48 x 1.5 M60 x 1.5 M65 x 1.5 M95 x 2
M1 M6 M6 M8 M10 M10 M12
a 50 50 60 70 80 110
b 45 46 60 75 80 115
c 34 36 44 55 60 92
d 8 8 10 10 10 12
e 12 12 20 20 20 30

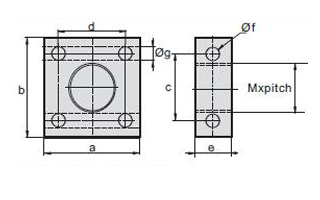

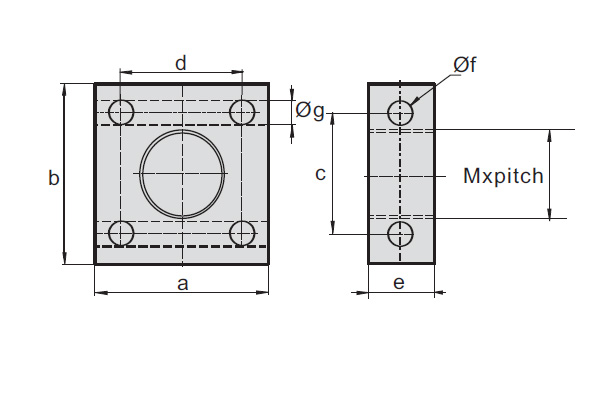

FLANGE MOUNTING PLATE FOR MINI THREADED CYLINDERS D/A :

Model No. : XA1602 XA2502 XA3202 XA4002 XA5002 XA6302
a 46 50 60 80 80 114
b 57 60 76 95 100 135
c 45 50 60 75 80 112
d 34 36 44 60 55 85
e 12 12 20 20 20 30
Øf 6.6 6.6 9 NA NA NA
Øg 6.6 6.6 9 11 11 17
Mxpitch M36x1.5 M39x1.5 M48x1.5 M60x1.5 M65x1.5 M95x2
