- Best selection for side
clamping for strap free
applications.
DESCRIPTION:

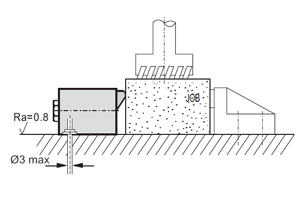

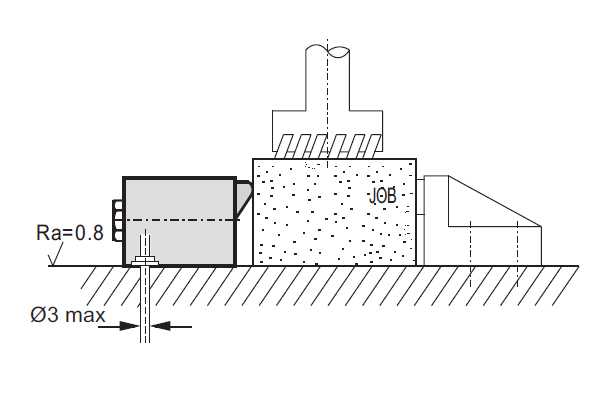

These Low block cylinders are suitable for clamping work pieces
from the sides where clamping is not possible from top.
Hydraulically operated piston pushes the pivoted lever against the
work piece. By positioning the pivot lever it is possible to have a
downward force in addition to horizontal push force to clamp the
work piece firmly on to workrest. This prevents lifting of
component.
FEATURES:
- Min./ Max. Operating Pressure 10/250 bar.
- The vertical force is approx. 30% of nominal clamping force.
- Compact cylinder design.
- Cylinder with Manifold mounting is available as optional. O-ring
will be supplied.
NOTE :
- Refer general design notes before selection & use.
- For Manifold mounting, plug threaded port.
- Ordering specification for seal kit. Add prefix "SK" to the
model Number.
- Keep back pressure in the
system and in the line to
minimum for smooth working
of cylinder.

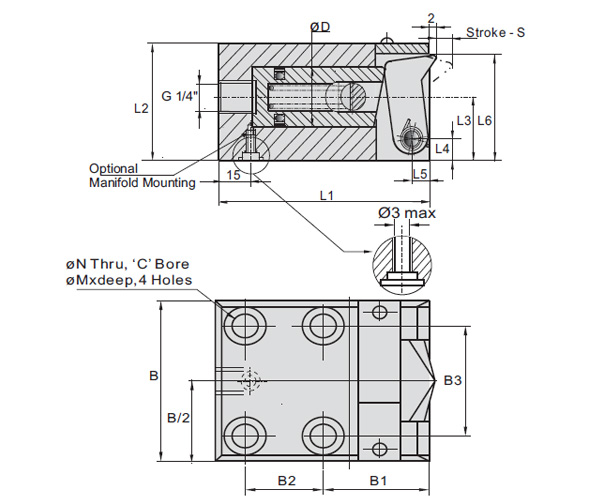

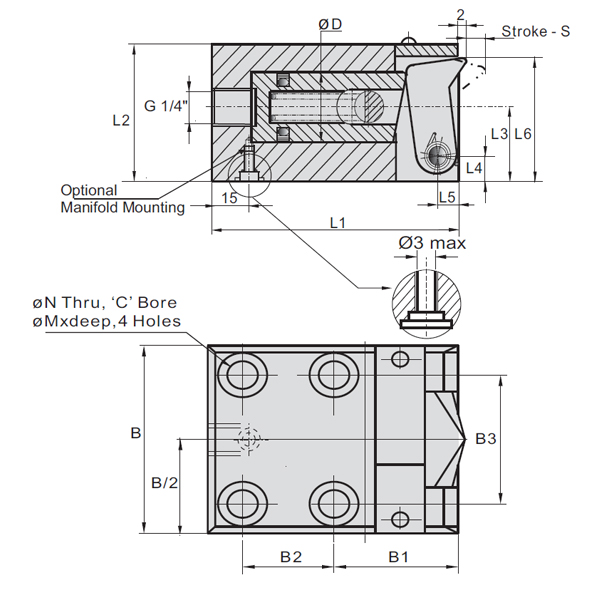

SPECIFICATION CHART
All dimensions in mm.
| Model No. |
A21201 |
A21202 |
A21203 |
| Force kN @150bar |
3.7 |
7.2 |
14.8 |
| @ 250 bar |
6.2 |
12 |
24.7 |
| Piston / Ø D |
18 |
25 |
36 |
| Piston area Sq.cm |
2.5 |
4.9 |
10 |
| Stroke S ± 0.5 |
8 |
10 |
10 |
| Oil Volume cc |
2 |
5 |
10 |
| L1 |
70 |
90 |
98 |
| L2 |
35 |
40 |
50 |
| L3 |
19 |
23 |
27 |
| L4 |
6.5 |
9 |
11 |
| L5 |
5.5 |
6 |
8 |
| L6 |
32 |
38.5 |
47 |
| B |
50 |
60 |
80 |
| B1 |
33 |
42 |
45 |
| B2 |
23 |
38 |
38 |
| B3 |
32 |
40 |
56 |
| ØM x deep |
14.5 x 9 |
14.5 x 9 |
17.5 x 11 |
| ØN |
9 |
9 |
11 |

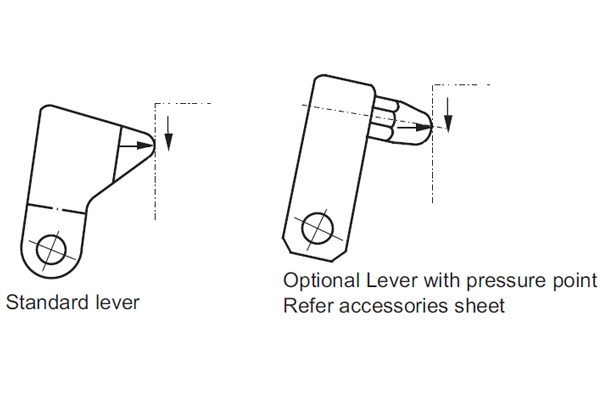

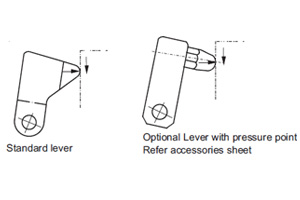

Optional Lever with
Pressure Point |
XL1801 |
XL2501 |
XL3601 |
Specifications subject to improvements.
Click here to download a pdf:
A21201 | A21202 | A21203
- Best selection for side
clamping for strap free
applications.
- DoubleActing.
- Maintenance free.
- Positive Clamping.

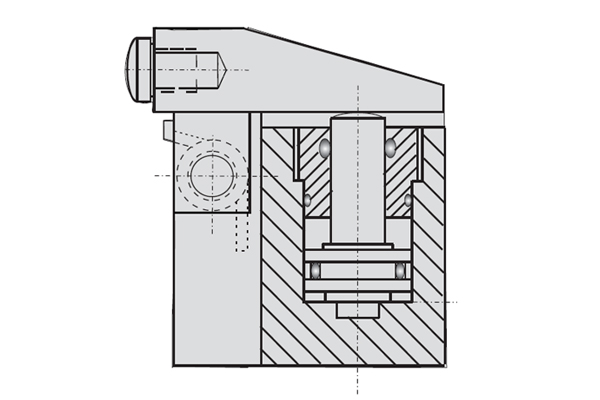

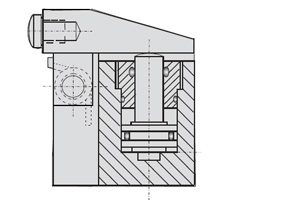

DESCRIPTION:
This type of Low block cylinders are suitable for clamping work pieces from
the sides where clamping is not possible from top. Hydraulically operated
piston pushes the pivoted lever against the work piece. By positioning the
pivot lever it is possible to have vertical push force to clamp the work piece
firmly on to workrest.
FEATURES:
- Min. / Max. Operating Pressure 10/250 bar.
NOTE :
- Refer general design notes before selection & use.
- Ordering specification for seal kit. Add prefix "SK" to the
model Number.
|

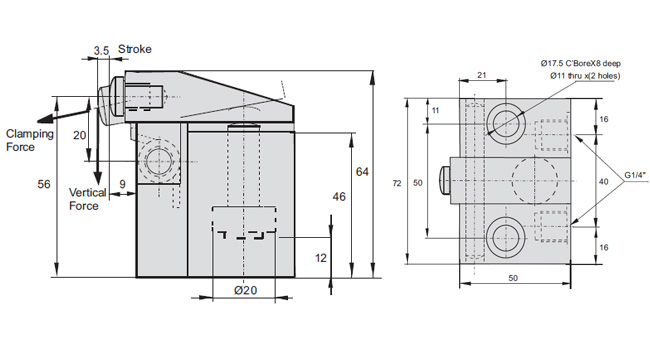

| PORTING DETAILS |

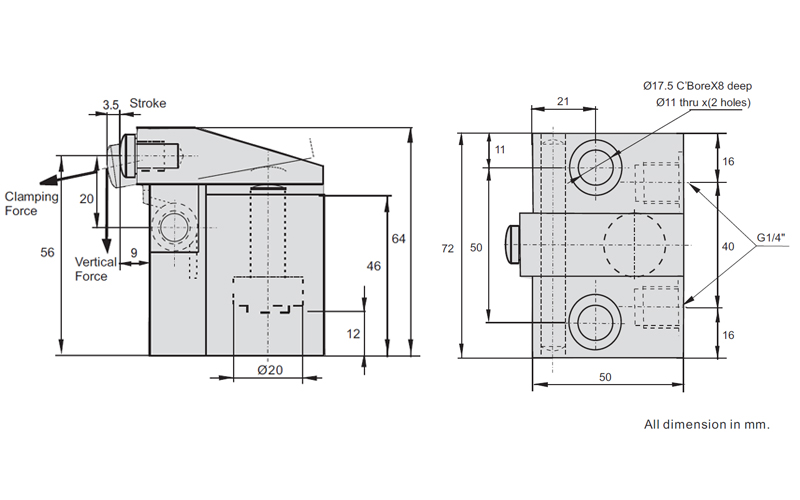

SPECIFICATION CHART |
|
| Model No. |
A22301 |
| Piston / Ø d |
20 |
| Oil Volume cc |
1.6 |
| Force kN @ 150 bar |
4.1 |
| @ 250 bar |
35 |
| Piston area Sq. cm. |
3.14 |
| Stroke - Vertical |
5 |
| Horizontal |
3.5 |
|
All dimensions in mm.
Specifications subject to improvements.
Click here to download a pdf:
A22301

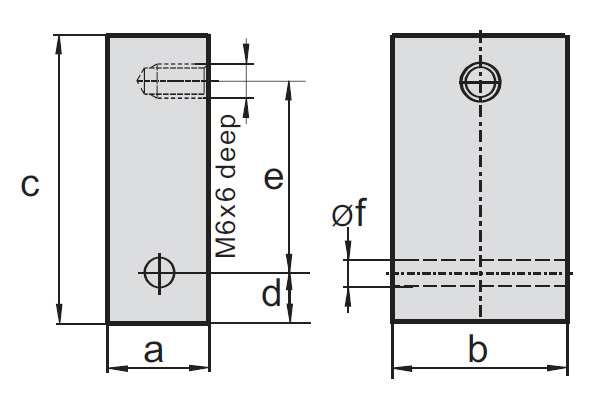

CLAMP LEVER FOR LOW BLOCK CYLINDERS :
|
|
| Model No. |
XL1801 |
XL2501 |
XL3601 |
| a |
12 |
12 |
16 |
| b |
23.5 |
35.5 |
47.5 |
| c |
30 |
34 |
43.5 |
| d |
6 |
6 |
6 |
| e |
17 |
22 |
29 |
| Øf (H7) |
5 |
6 |
8 |
|
PRESSURE POINT :
|
|
| Model No. |
XP2101 |
XP2102 |
| a |
6 |
10 |
| b |
9 |
11.5 |
| c |
R2 |
R3 |
| ØD |
9 |
12 |
| M |
M6 |
M10 |
| A/F |
10 |
13 |
|
|
|
