- Plunger retracts during reset and permits
sliding of job and easy loading and unloading
of job.
- Plunger does not exert force on the job, while
supporting job.
- Gives positive work support.
- Ideal for achieving good flatness, surface
finish &better control ofCP&CPK.
DESCRIPTION:

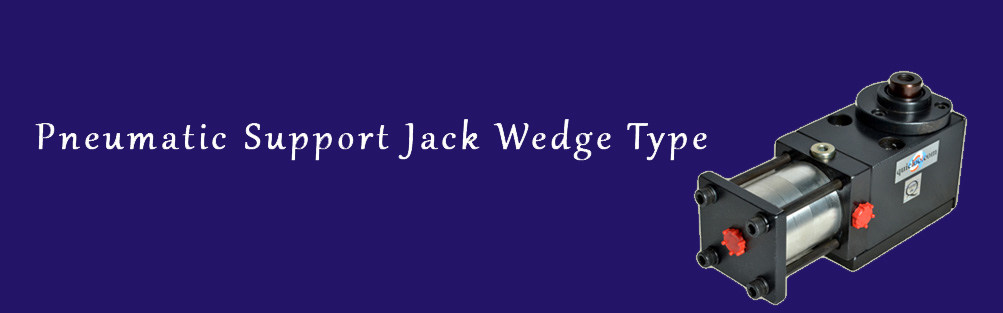

This pneumatically operated wedge locking type support
Jacks gives positive support and locking to the plunger on
actuation.
This can be mounted directly into the fixtures. It is possible
to get the initial surface contact of work piece within
variations of 1.3mm. These job variations are taken care of
during positive supporting and locking.
FEATURES:
- Min./ Max. Operating Pressure 3 / 6 bar.
- Positve Locking.
- Max. supporting stroke 2.62mm.
- Max. supporting load 20 kN.
- Special support jacks can be done to suit Customer’s
requirement.
NOTE :
- Refer general design notes before selection & use.
- Ordering specification for seal kit. Add prefix "SK" to the
model Number.
|
Do not apply eccentric Load. Clamping force
must be directly over the support point.
|
| |

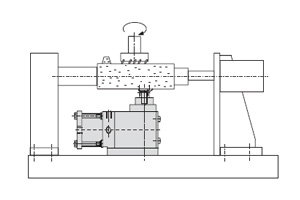

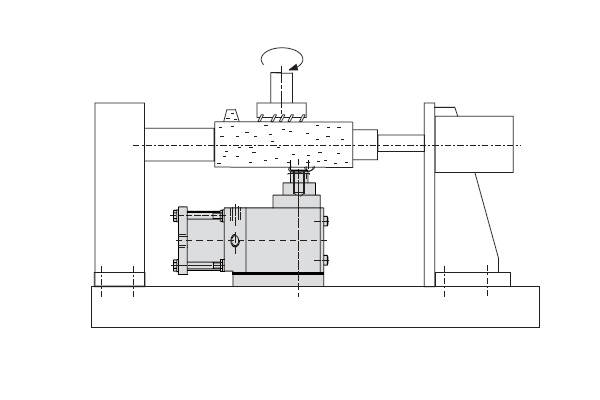

| APPLICATION CHART : |

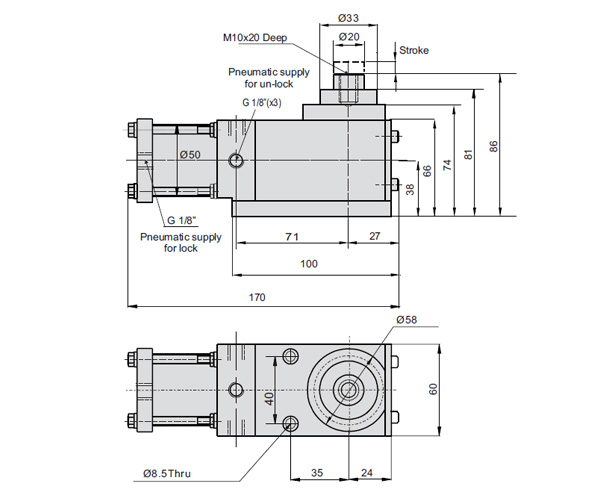

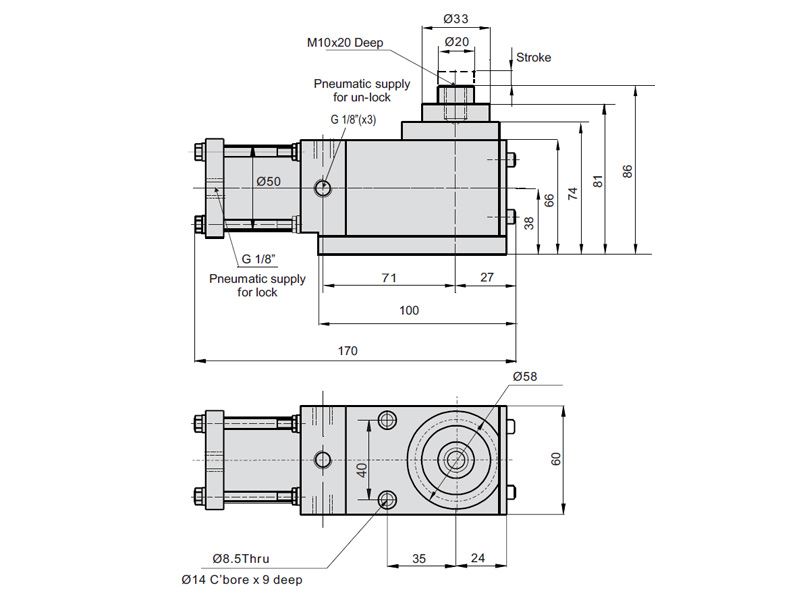

SPECIFICATION CHART : |
|
|
| Model No. |
J31301 |
| Stroke |
2.62 |
| Load capacity kN |
20 |
| Pressure Point |
XP2102 |
| Spring Force |
4N |
|
|
