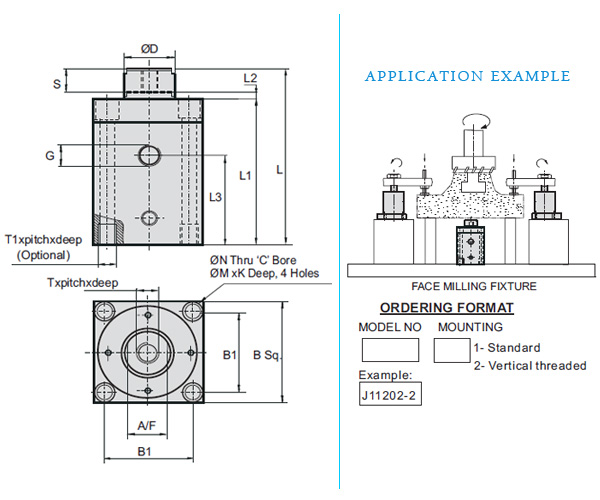

DESCRIPTION:
Hydraulic Work Support Jacks are used to provide self adjusting rest
for the work piece during machining operations. They compensate
for work piece surface irregularities, deflection and vibration under
machining loads.Work piece is supported by the plunger under the
spring force. When system pressure is applied the plunger locks
hydraulically providing a rigid support to the workpiece.
FEATURES:
- Min/ Max Operating Pressure 50 / 250 bar.
- Bottom threaded mounting holes are available as optional.
NOTE :
- Refer general design notes before selection & use.
- Spring should not be used to lift the work pieces.
- Ordering specification for seal kit. Add prefix "SK" to the model
Number.
|
- Support force should be greater than
Clamping force.
- Support force should be at least 150%
of Clamping force.
- Do not apply eccentric Load. Clamping
force must be directly over the support
point.
- If there is a risk of cutting coolants being
sucked via air vents the same to be
avoided by connecting air vent. The
other end of which is placed in a safer
position.
GRAPH :

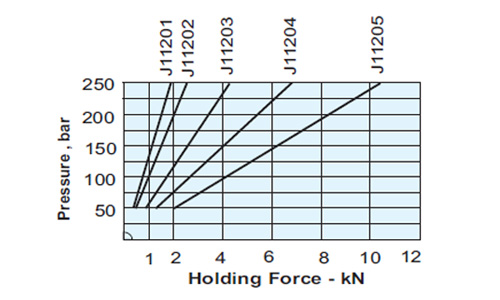

- Admissible Holding force ‘F’ as a function of operating pressure ‘P”.
|
|
